Inline PCB Separator Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply

Markenname:	Winsmart
Modellnummer:	SMTIR500
MOQ:	1 Satz
Preis:	USD40000-80000
Verpackungsdetails:	Sperrholzkiste
Zahlungsbedingungen:	T/T, L/C, Western Union

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

PCB-Zuführung:

Automatische Breiteneinstellung

PWB Entleerung:

Flacher ESD-Gürtel

Spindelgeschwindigkeit:

100,000RPM

Befestigungsmenge:

Arbeitstisch:

Spindelquantität:

Arbeitsbereich:

300x300mm, kann angepasst werden

Präzision schneiden:

± 0,05 mm

Routing von Bit Dia:

0,8-3,0 mm

Name:

Inline-PCB-Separator-Fräsmaschine

Versorgungsmaterial-Fähigkeit:

100 Sätze/Monat

Produktbeschreibung

Inline PCB Separator Router Machine with 300x300mm Working Area and 0.8-3.0mm Routing Bit Dia for AC 380V Power Supply

This high-precision, automated solution is designed for separating individual PCBs from panels. Featuring dual spindles and working tables, it significantly boosts productivity in high-volume electronics manufacturing. Supports MES integration and barcode scanning for seamless traceability and real-time production monitoring.

Key Features

Cutting path full closed loop, real-time error tracking, feedback, compensation.
Using imported split PLC, breaking the traditional computer-based board PLC control card, higher stability and stronger anti-interference.

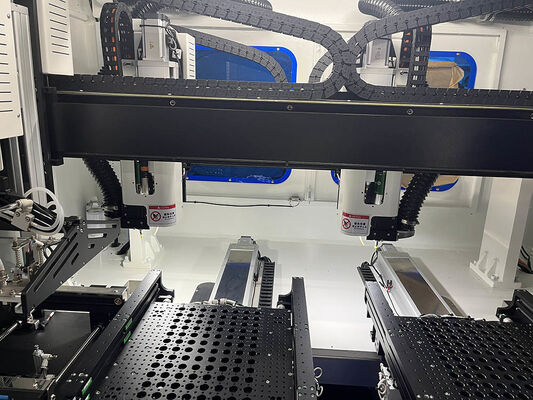

Dual spindles cutting 2 boards at the same time.
Automatically identify barcodes and retrieve cutting programs.
Has tool detection function and auto change function.

Technical Specifications

Model Number	SMTIR500
Machine Size	Approx 2250(L)x1300(W)x1750(H)mm
Machine Weight	Approx 800kgs
Max PCB Size	300x450mm (customized), Dual tables
PCB Thickness	0.4-6mm
Cutting Spindle	100000rpm/min
Cutting Accuracy	±0.05mm
Repeat Accuracy	±0.01mm
Power Supply	AC 380V, 50/60Hz, 3KW

Operational Advantages

Increased Throughput: Dual spindle and table design enables continuous high-speed operation
Improved Accuracy: Vision system and precision spindle ensure high-cut quality
Traceability & Quality Control: MES and barcode integration provide full production traceability
Reduced Downtime: Alternate table operation and optional tool auto-change minimize interruptions
Operator-Friendly: Simple HMI and offline programming reduce training time
Dust-Free Operation: Integrated vacuum system extends equipment life

Applications

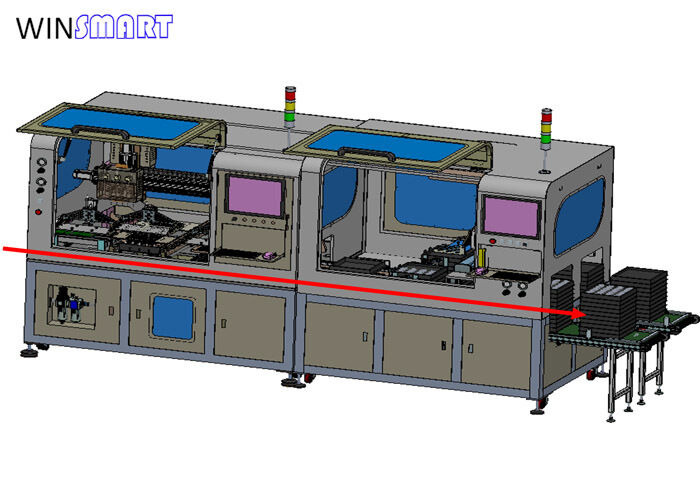

It is widely used in electronic product manufacturing industry. Because the traditional manual folding method will produce strong stress, which has a serious impact on the product quality, so the manual folding has been basically replaced by the machine cutting. This inline router system, with dual separated spindles and dual tables for high volume production.

Why Choose Our Solution

Stable: Imported main components with equipment weight over 700kg
Professional: Multiple patented technologies in automation
Innovative: Committed to developing labor-saving, highly automated equipment
Responsive: Solution provided within 2 hours of inquiry
