Produktdetails:
|
| Präzision: | ±0.05mm | Spannung: | 220V |
|---|---|---|---|
| Kundendienst erbracht: | Ingenieure verfügbar Maschinerie übersee instandhalten | Energie (W): | 500W |
| Garantie: | 2 Jahre | NAME: | PWB-Trennzeichen-Maschine |
| Markieren: | 170mm PCB Punching Machine,0.45MPa PCB Punching Machine,Metal Board Depaneling PCB Punching Tool |
||

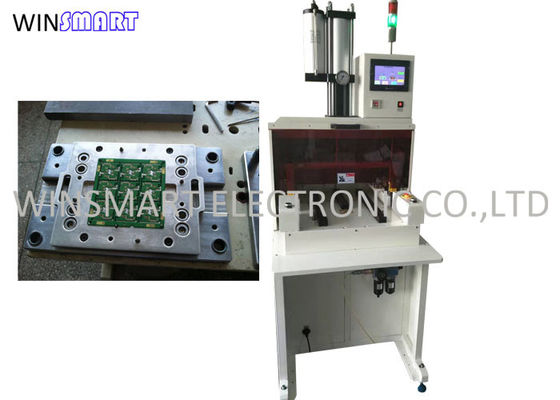

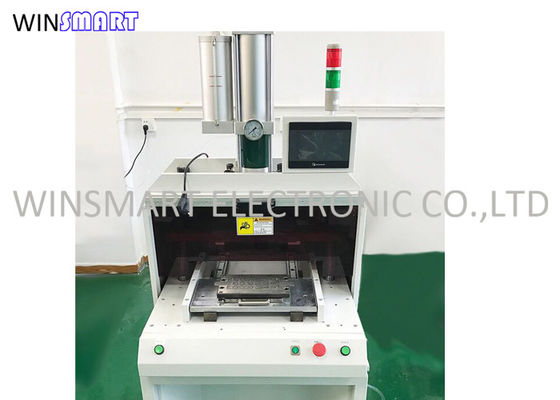

PCB Punching Dies PCB Separator Machine For Metal Board Depaneling
Features:
Depaneling PCB/FPC by means of punching dies, to avoid micro-cracks caused by manual.
Die toolings is changeable
Easy set up of punching dies
Loading and unloading PCBs is convenient
Easy operation, has safe protection system
Air cylinder driven
Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
Punching Mold:
FAQ:
Q: What is life time of blade?
A: 100,000-300,000 cutting times, depends on PCB material.
Q: What is PCB Material available?
A: FR1, FR4, CEM, MCPCB.
Q: What is PCB thickness?
A: 0.4-3.5mm
Q: What is cutting speed?
A: It is adjustable, 0-400mm/s.
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
Shipping Ways:
1. DHL/FedEx/UPS/TNT Express
2. Air
3. Railway
4. Ocean
5. Truck
