0.001mm Axis Precision Pcb Cnc Router , Pcb Depanelizer machine

0.001mm Axis Precision Pcb Cnc Router , Pcb Depanelizer machine

Brand Name: Winsmart
Model Number: SMTR09
MOQ: 1 Satz
Preis: USD20000-80000
Packaging Details: Sperrholzkiste
Payment Terms: T/T, L/C, Western Union
Detail Information
Herkunftsort:
CHINA
Zertifizierung:
CE
Staubsauger:
Spitzen- oder unter
PWB-Material:
FR4, Aluminium
PWB-Stärke:
0.8-3.0mm
Wegewahlstückchen:
Durchmesser 0.8-3.0mm
Schnittgenauigkeit:
±0.05mm
Maximale PWB-Größe:
300x300mm
Eigenschaft:
Wirtschaftlich
Schnittgeschwindigkeit:
1-100mm/s
Neu:
ja
Produktname:
PCBA CNC-Wegewahl-Maschine
Versorgungsmaterial-Fähigkeit:
100 Sätze/Monat
Hervorheben:

Pcb Cnc Router

,

0.001mm Pcb Cnc Router

,

Pcb Depanelizer Machine

Product Description

PCBA CNC Routing Machine Automatic Automatic PCB Milling Machine



PCBA CNC Routing Machine Advantages:

X10 zoom-in image makes programming easier&increase the accuracy of point setting.

2 sliding tables provide simultaneously in-and-out movement to reduce the tack time for better productivity.

AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.



PCBA CNC Routing Machine Parameters:

Overall
Dimensions(W*D*H) 1250mm*1650mm*1450mm
Weight 750KG
Height offset 60~110mm
Manipulator
Motor type JiaBao series
Positioning repeatability 0.001mm
Axis working area(max) 650mm*560mm*50mm
Work station
PCB fixation standard,specialization
PCB loading/unloading manual
PCB size (max) 320*320mm
PCB thick (max) 5mm
Fixturing
Rigidity fixturing Customized make fixture
Fixturing fixation machinery
Spindle Motor
Power 150W
Spindle 60000rpm/min
Protect self/wind cooling
Change cutter Specialization
Routing capability
Cutting speed(max.) 80mm/s
Driving speed(max.) 2500mm/s
Precision of cutting 0.01mm
Vacuum System
Vacuum power 3.5KW AC 380V
Vacuum plumb
Utilities
Power 2.0KW AC380V
Air supply 4-6KG/cm2
Programming
Program edit Inline
Function edit Line,arc,circula,U-curve
Program storage HDD
Vision system SONE colour CCD
milling cutter offset AUTO
Vacuum setup AUTO
Operation Monitors
Iindicator Iindicator Machine state
tool check Automatic detection tool life, the use of time testing
Motor protect Have overheating, overload, low voltage protection function
motor over loading check Have Overload, the line is normal, low voltage protection function
Tool usable time Automatic detection tool life,
Data statistic Separate board model, separating count, diverse counting methods
Error record Software automatically records all alarms memory of machines
III. Accuracy
Axis precision 0.001mm
Cutting precision 0.1mm
IV. Safety
Working area protect With four sealed protection
Door sensor Front and rear safety door micro-switch sensor (optional)
Exigency stop button



PCBA CNC Routing Machine Display:

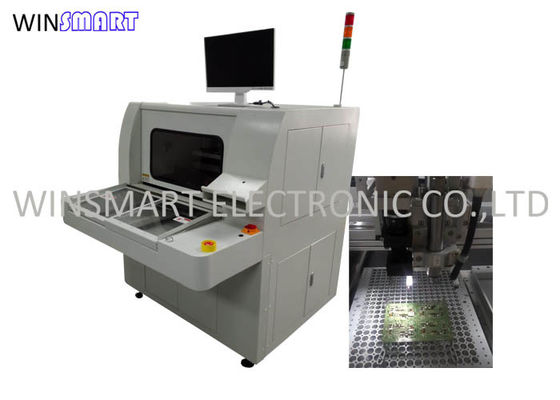

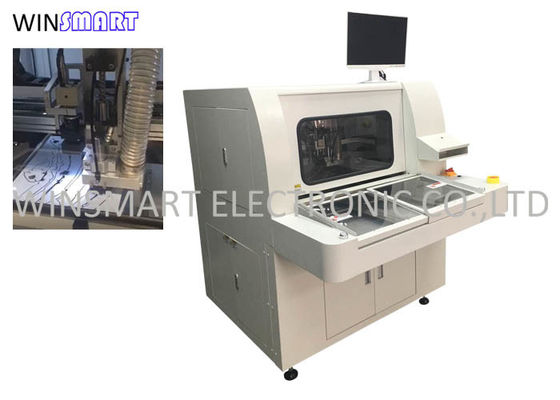

0.001mm Axis Precision Pcb Cnc Router , Pcb Depanelizer machine 0





PCBA CNC Routing Machine Includes:

Vaccum cleaner x 1pc

SycoTec spindle x 1pc

Routing bit x 10pcs

Instruction manual x 1pc

Operation videos
